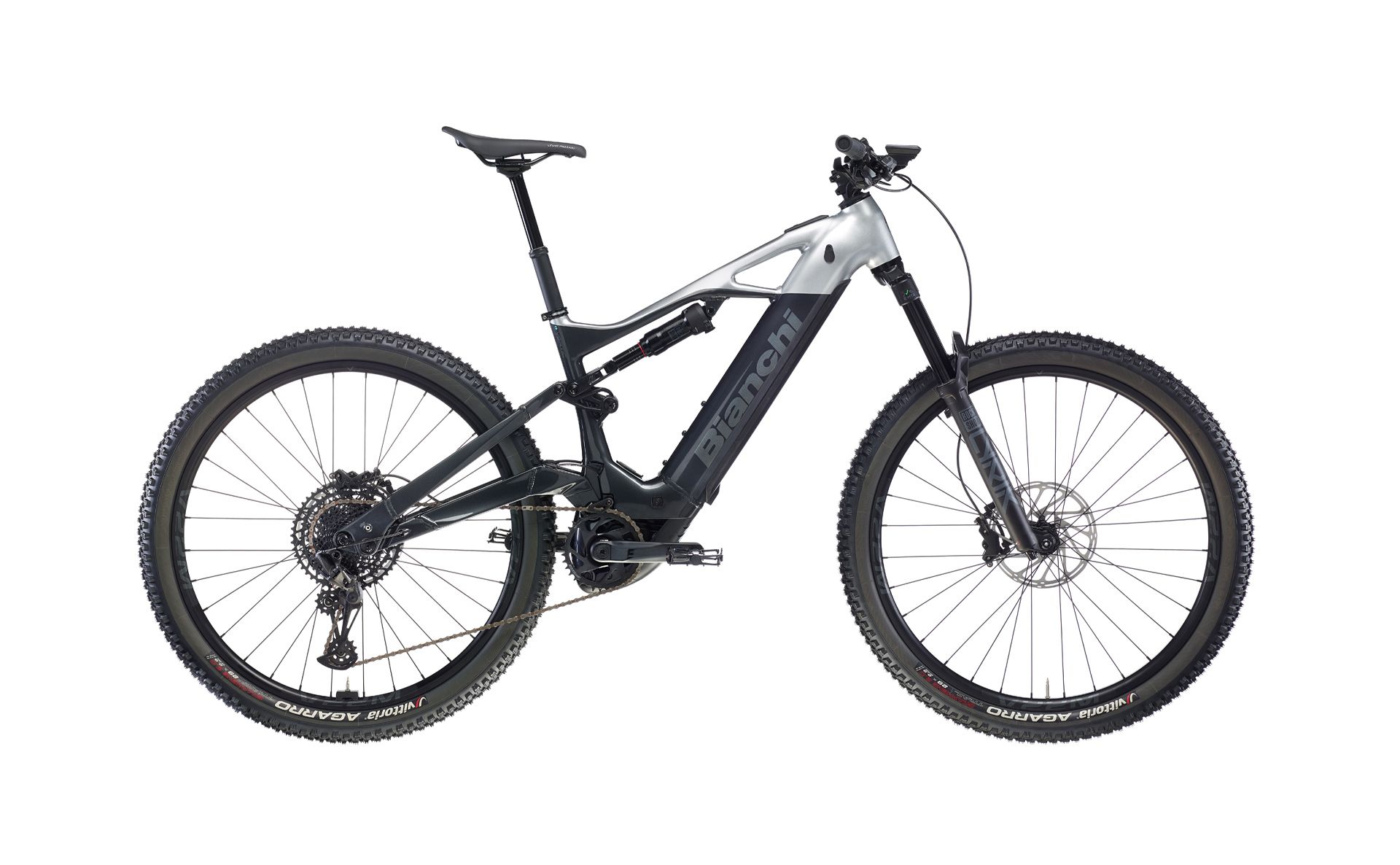

Bianchi e-Vertic FX-Type 9.2 SX 12SP

Especificaciones Técnicas

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX BDU3840 – Intuvia 100

  2. Battery

     Bosch Powertube 800 Wh

• Frameset

  1. Frame

     Bianchi e-Vertic FX, aluminium, 12×148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53

  2. Fork

     RockShox Psylo Silver RC 29″, 150 mm travel, Steerer tube 1,5″ tapered, 35 mm stanchions, Maxle Stealth 15×110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake

  3. Rear Shock

     RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment

  4. Headset

     FSA 1.5″ for tapered fork steerer, Dual side internal cable routing, Head Block system

• Drivetrain

  1. Shifters

     Sram SX Eagle, single click

  2. Rear Derailleur

     Sram SX Eagle, 12 sp

  3. Crankset

     FSA CK-745/IS, Aluminium forged – 165 mm Crank length: 165 mm

  4. Chain

     Sram SX Eagle, 12 sp

  5. Cassette

     Sram PG-1210 Eagle, for HG body, 11-13-15-17- 19-22-25-28-32-36-42-50T

• Brakes

  1. Brakes

     Sram DB4, 4 pistons calipers, mineral oil

  2. Brake Levers

     Sram DB4, included in the brake

  3. Rotor

     FRONT: Sram Centerline, 200 mm / REAR: Sram Centerline, 200 mm

• Wheels

  1. Wheels

     Velomann Rim: V22M, 622×28, 32 hole, Tubeless ready; Hubs: Shimano TC500 thru axle

  2. Tire

     Pirelli Scorpion 29×2.6 E-MTB M, 60TPI

• Cockpit

  1. Stem

     Velomann 1″ 1/8, 35 mm barbore Size: 50 mm

  2. Handlebar

     Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm

  3. Grips / Extensions

     Herrmans Luna lock 130 mm

• Saddle

  1. Seatpost Clamp

     Bianchi Custom

  2. Seatpost

     Velomann Diameter 31.6 mm, Internal cable routing length: 100 mm – SM, 125 mm – MD, 150 mm – LG/XL

  3. Saddle

     Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
